Animal Scanner

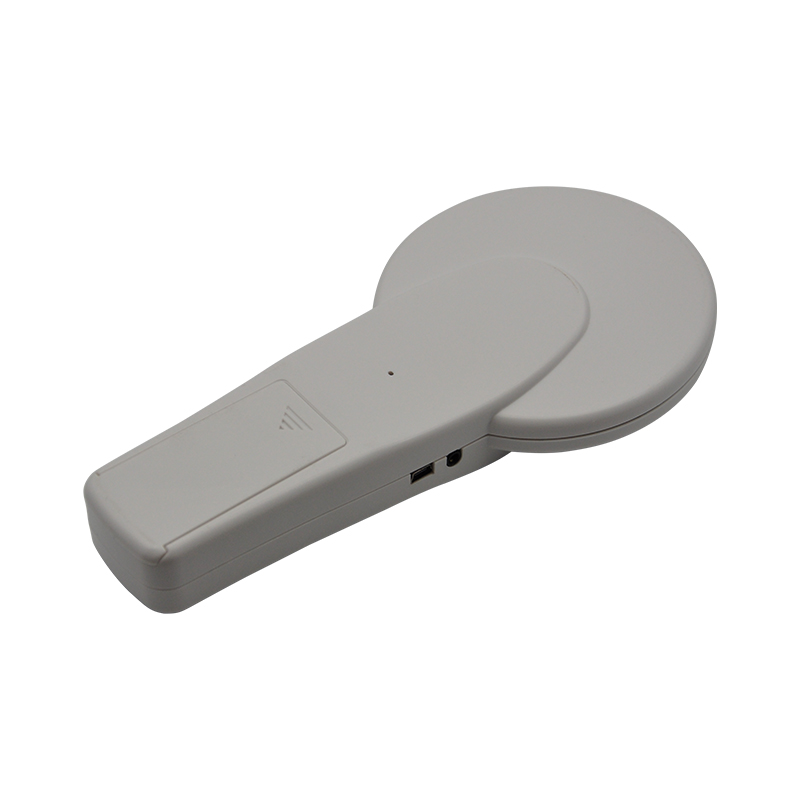

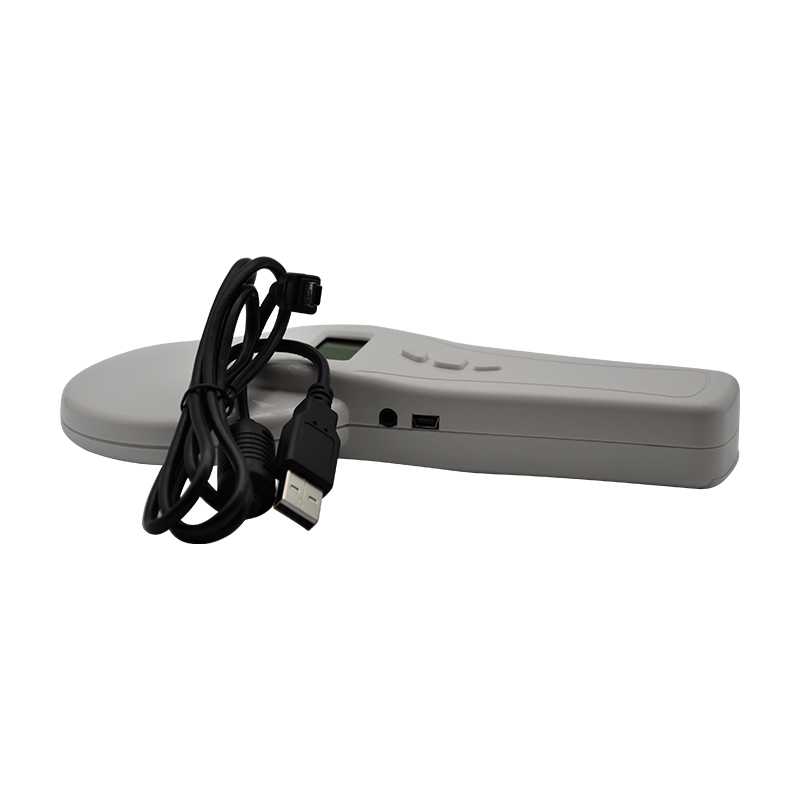

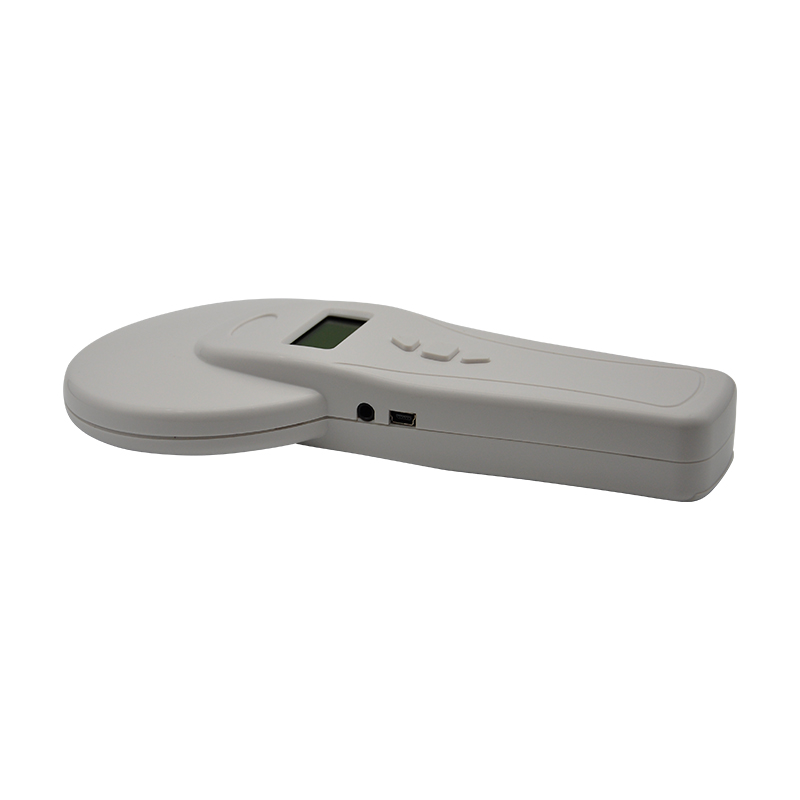

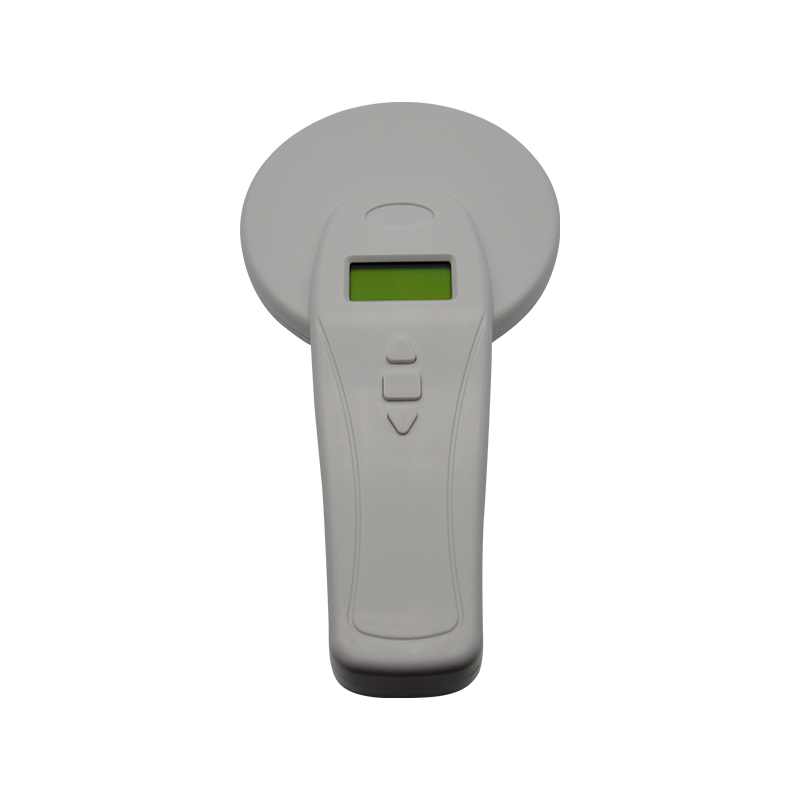

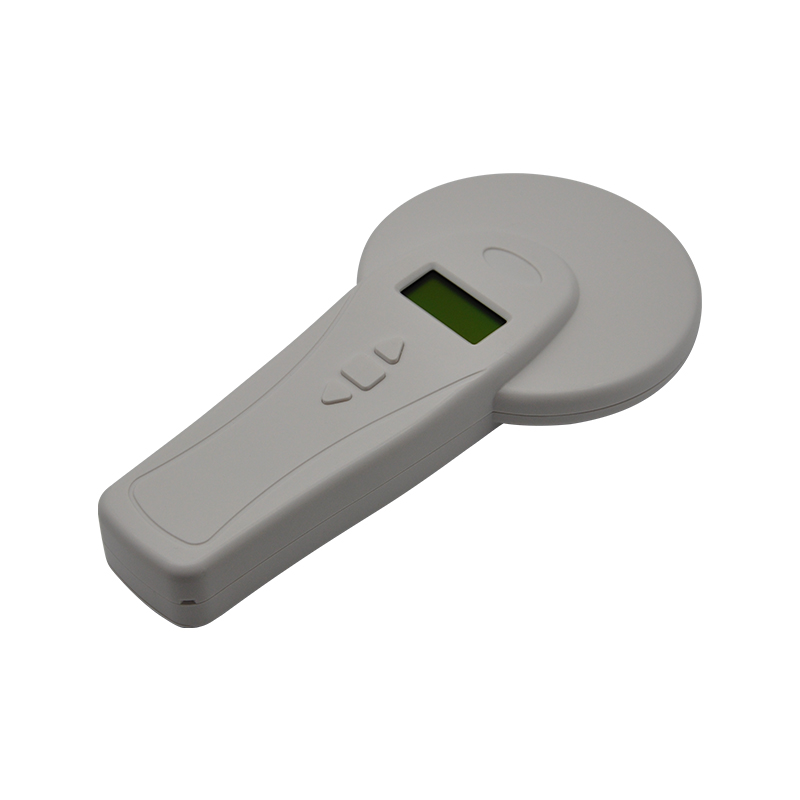

Animal Microchip Reader ST01

  • Protocol: ISO11784/5 FDX-B
  • Frequency: 134.2KHZ
  • Port: MINI USB (USB 2.0)
  • Momery capacity: 12000pcs information
  • Low Frequency ISO 11784/5 FDX-B Animal Handheld Reader reading 134.2KHz ISO chip FDX-B rfid glass tags injectable pet rfid microchips for dog fish cat snake cow pig id tracking


Product Name Low frequency Animal Microchip Reader ST01
Material ABS
Size 197.2X101MM
Frequency 134.2KHz
Standrad and Protocol ISO11784/5
Transmission Principle FDX-B
Reading range 3~8cm(Depend on the tags)
Momery capacity 12000pcs information
Port MINI USB (USB 2.0)
Work temperature '-10℃-50℃
Power DC9V
Logo Neutral packing or OEM, customized
Function *Could readd 15 digits RFID codes while meeting ISO 11784/11785 FDX-B standard .
*Single button operation and can stor 12000 pieces information automatically.
*Reading record could show on the display and be kept in the reader memory.
*Portable reader got  LCD disploayer, which can show reading status in English.
*LCD displayer will show "Low Power" while power being lower than 6.5V.
*The battery power could last for about 1 month while stand by mode.
Kindly noted This reader does not contain a battery and can only scan the glass tube tag on the outside and cannot scan the tag inside the animal.
