Access Control Reader

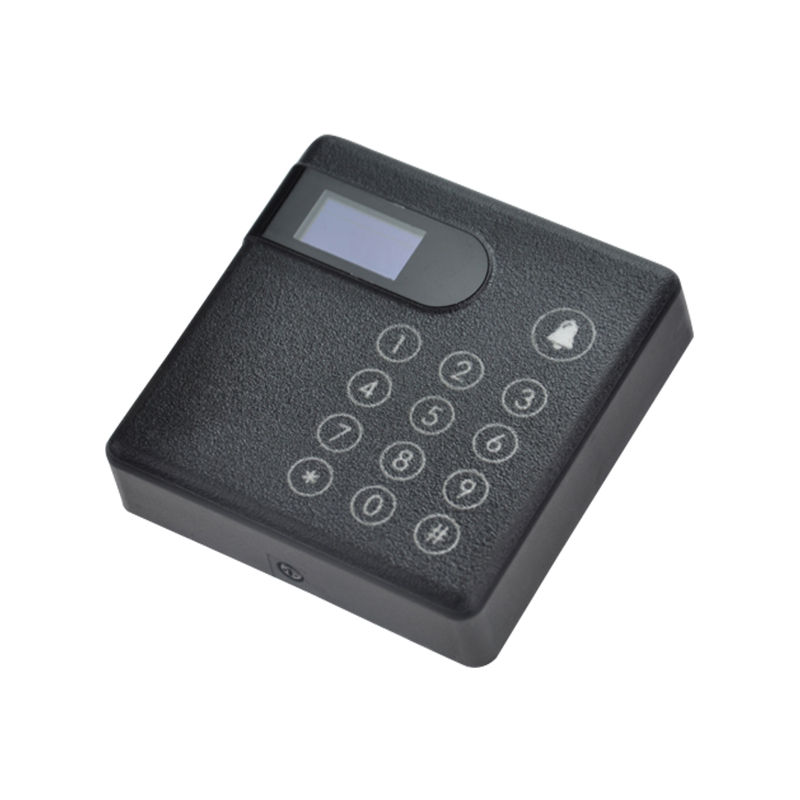

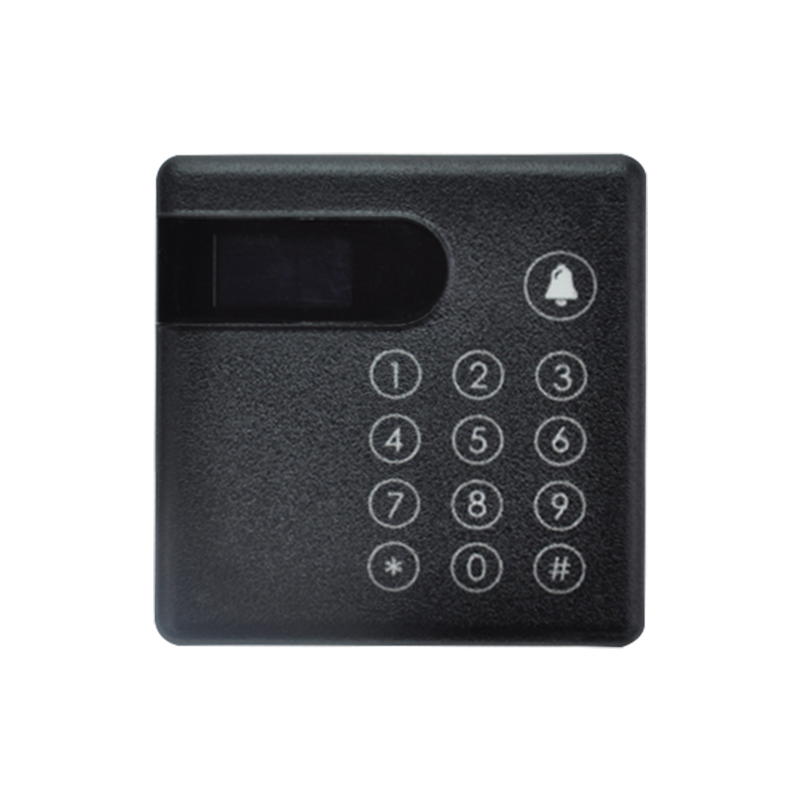

ST-N23 Smart Card RFID Reader

Voltage:DC5V-12V
Frequency:125Khz/13.56Mhz
Interface:Wiegand 26 /34
Size:86mm×86mm×22mm
Can't work alone need work with the access controller panel
INQUIRY

Material	ABS+Epoxy
Size	86x86x22mm
Voltage	DC5~16V
Static Current	less than 50mA
Color	Black
Reading Distance	EM ID Card 6~10 cm MF IC Card 4~8 cm
Temperature	*-25℃~85℃
Reader speed	less than 0.2sec
Humidity	10%~90%
Waterproof	IP67
Support	125KHz EM ID /13.56MHz MF IC
Card Type	EM-ID card,General ID card,M 1 card,15693 card,14443A/B card etc.
Frequency	125KHz /13.56MHz
Interface	Weigand26/34/RS232/485
Communication Distance	Weigand =100M,Rs232=10M,Rs485=1000M
Built-in	Antenna,speaker,buzzer,red(bule)green color LED
Transmission	Weigand,RS232,RS485
Speical Provide	Logo printing,long cable,Reader module

Installation

1. The reader inside the sticker on the position of reader to be installed. According to location Drilling two holes and an Middle outlet hole, in sert rubber plug into the fixed hole.(Note: If you install on the wall, then concealed need to install the 86 embedded box)

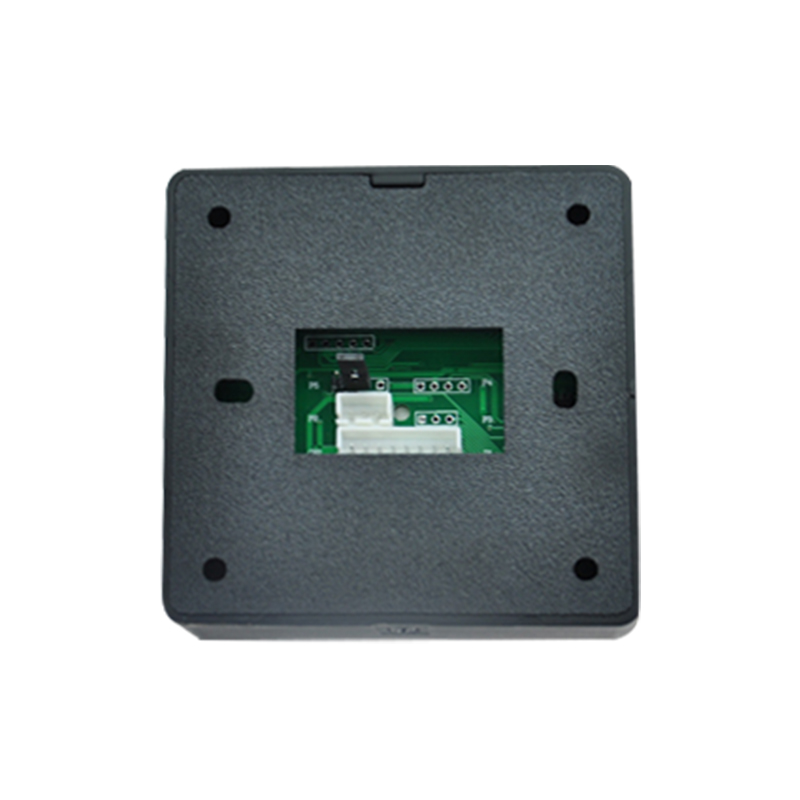

2.Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.

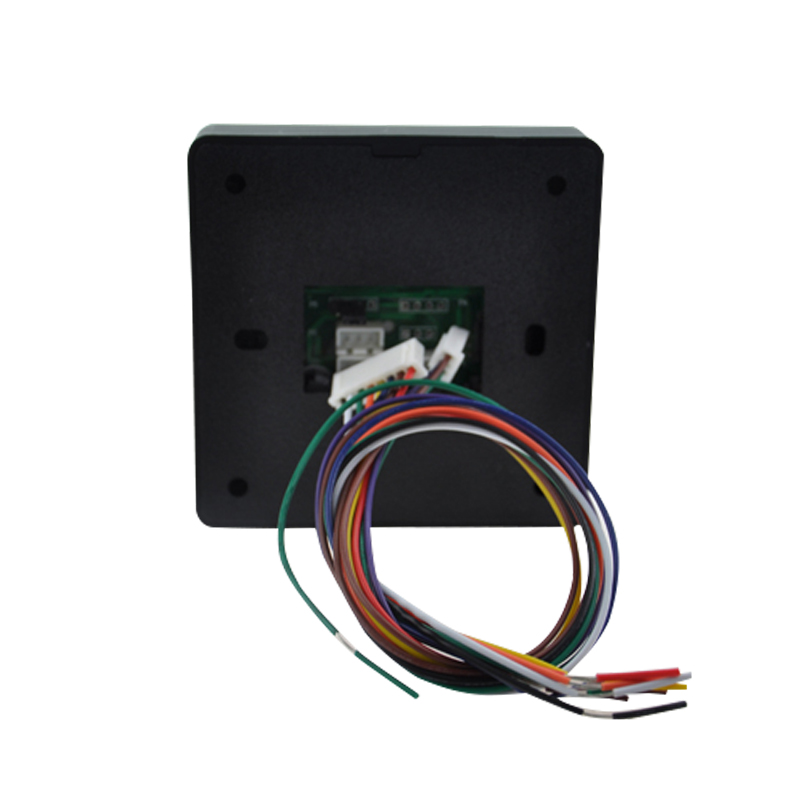

3.The reader cable through the outlet hole, connected by line instructions,it will panel and rear panel of the screw fixed.
