Access Control Reader

  • ST-F02

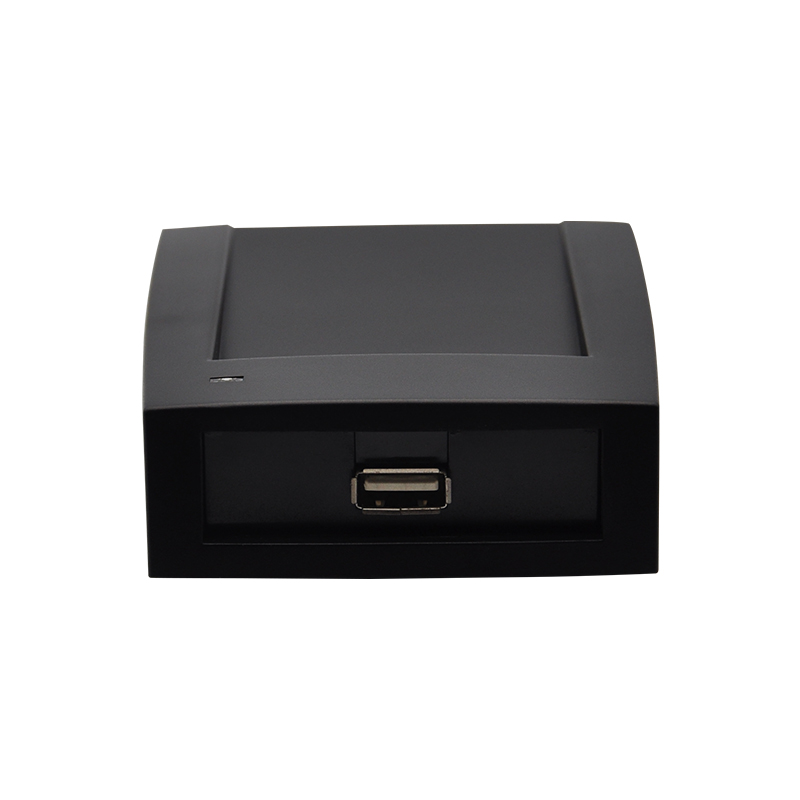

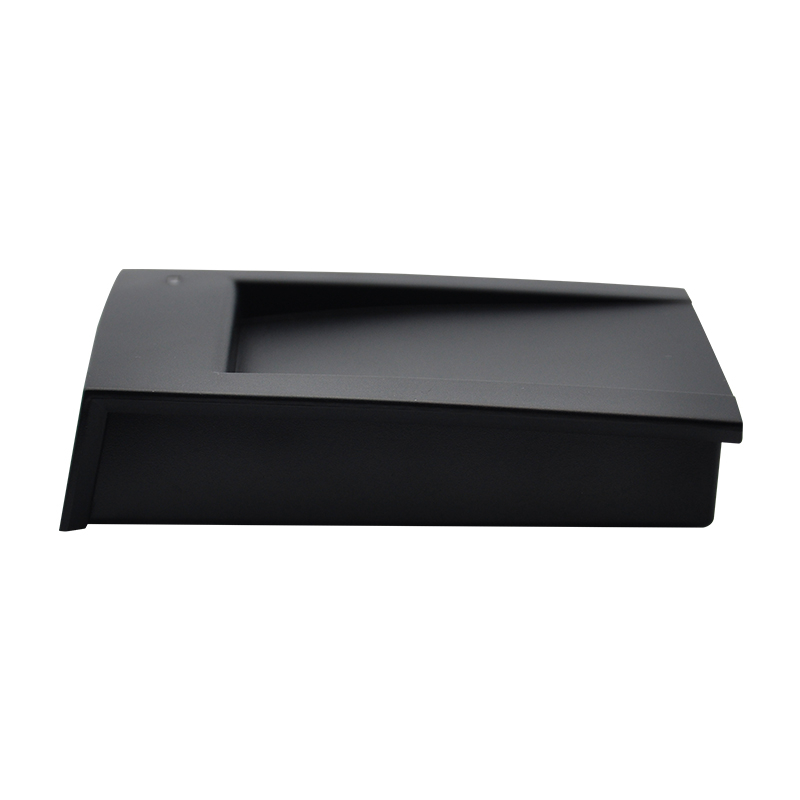

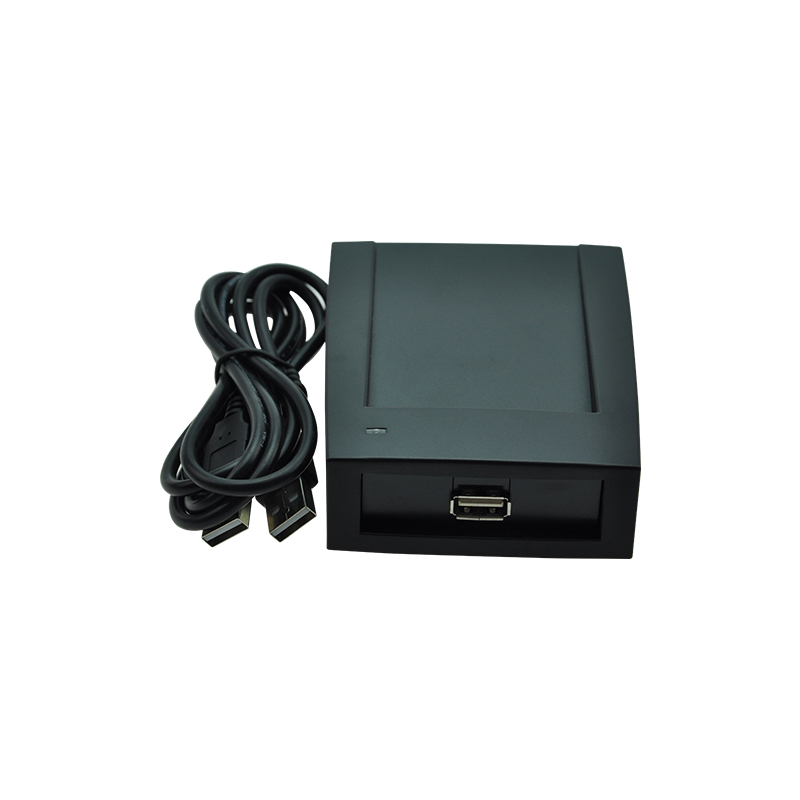

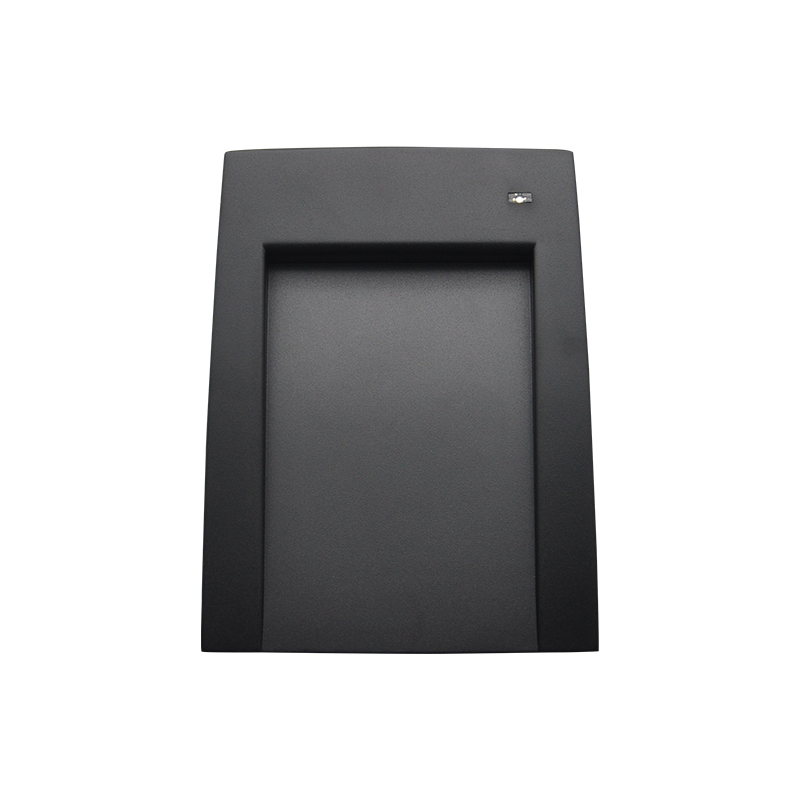

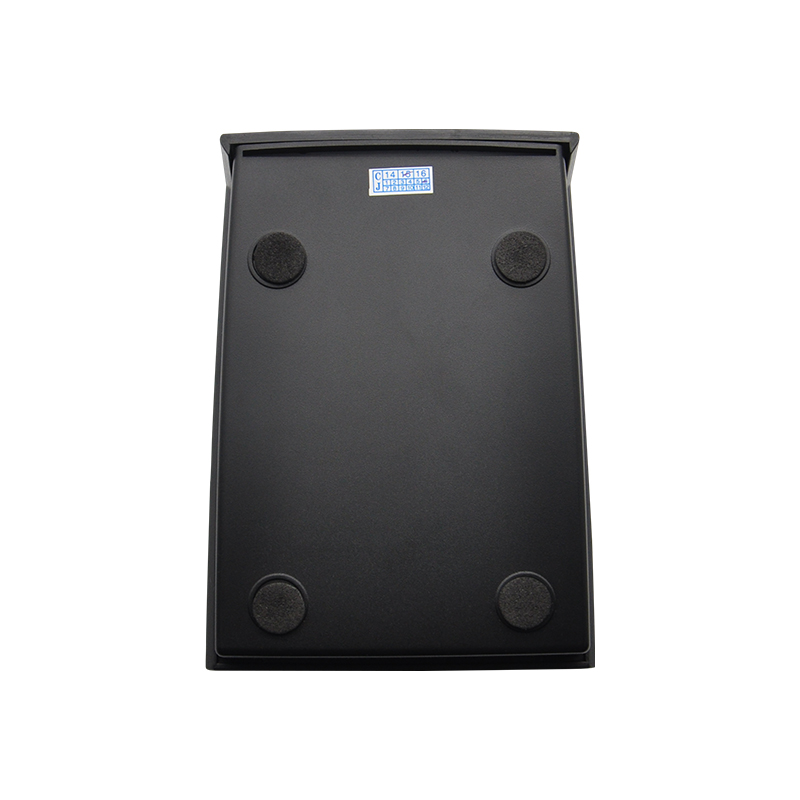

ST-F02 Desktop RFID access control reader

  • Card type: EM ID /MF IC
  • Frequency:125Khz/13.56Mhz
  • Interface:USB
  • Size:140x100x25mm
  • This reader packages all the electronics in one rugged weatherized epoxy resin enclosure designed to withstand harsh environments as well as provide a high degree of vandal resistance for reliable performance anywhere attractive and easy-t
Material ABS+Epoxy
Size 140x100x25mm
Voltage DC12V
Static Current less than 50mA
Color Black
Reading Distance ID: 3~15cm /  IC: 2~8cm
Temperature *-25℃~85℃
Reader speed  less than 0.2sec
Humidity  10%~90%
Support  125KHz EM ID/13.56MHz MF IC/ Dual frequency at the same time
Card Type   EM-ID card,Middle distance ID card,General ID card,Dual frequency card
Frequency 125KHz/13.56MHz / Dual frequency
Interface  USB
Built-in Antenna,speaker,buzzer,red(bule)green color LED
Transmission USB
Supporting System compatible with Windows98/2000/XP
Speical Provide Logo printing,long cable,Reader module,Dual frequency(ID&IC)

Connect USB data wire between Device and PC, after 30 seconds system testing period, then punch the card,and execute the following steps in PC: Start----Program----Accessories----Notepad.
Card Number will be showed on Screen automatically Lines (No need press "Enter" for it)

For access control ,attendance,fees,patrol,card,building on say,parking systems,highways and rfid outdoor application.
