Access Control Reader

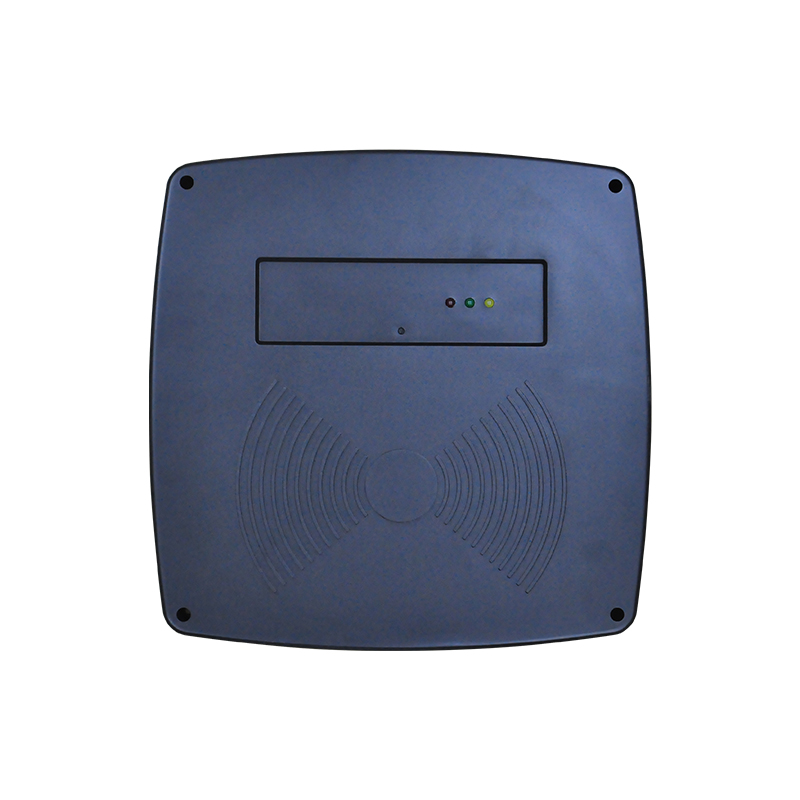

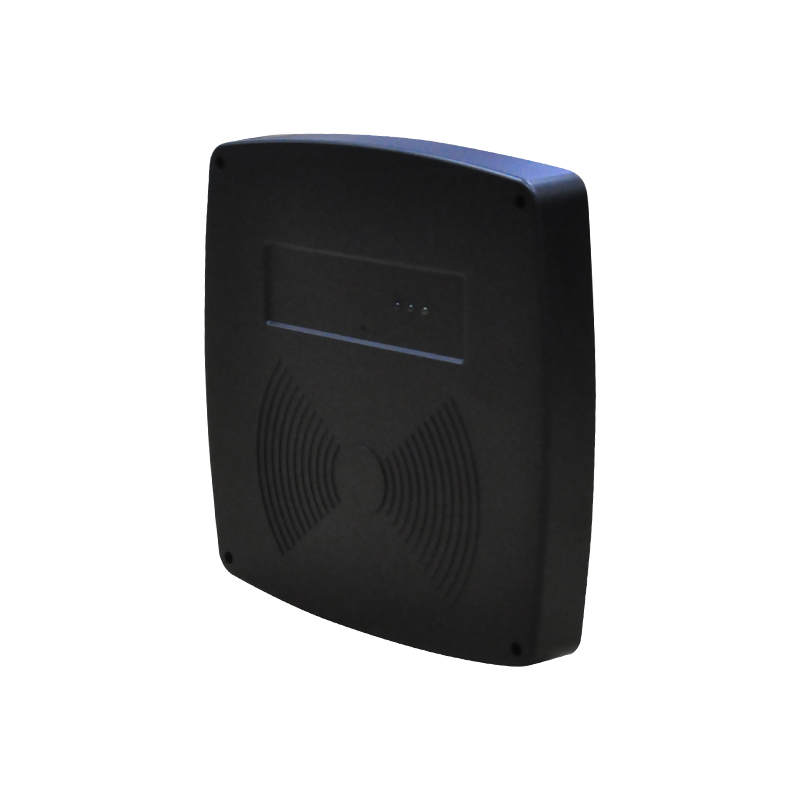

ST-M02 Middle Range Rfid Reader WG26
- Voltage:DC12V
- Frequency:125Khz EM ID
- Interface:Wiegand 26 /34/RS232/485
- Size:260x260x35mm
- This reader is ideal for installations incorporating parking control, personal identification, access control and through-wall, hands-free, logistic etc. And long read range applications.
| Material | ABS+Epoxy | ||||
| Size | 260x260x35mm | ||||
| Voltage | DC12V | ||||
| Static Current | less than 50mA | ||||
| Color | Black | ||||
| Reading Distance | 70~100cm for special clamshell cards | ||||
| Temperature | *-25℃~85℃ | ||||
| Reader speed | less than 0.2sec | ||||
| Humidity | 10%~90% | ||||
| Waterproof | IP67 | ||||
| Support | 125KHz EM ID | ||||
| Card Type | EM-ID card,Middle distance ID card,General ID card | ||||
| Frequency | 125KHz | ||||
| Interface | Weigand26/34/RS232/485 | ||||
| Communication Distance | Weigand =100M,Rs232=10M,Rs485=1000M | ||||
| Built-in | Antenna,speaker,buzzer,red(bule)green color LED | ||||
| Transmission | Weigand,RS232,RS485 | ||||
| Supporting System | compatible with Windows98/2000/XP | ||||
| Speical Provide | Logo printing,long cable,Reader module | ||||
Installation
Using + type screw driver to loosen the screw between the panel and motherboard.
And then embed the motherboard to the side wall with the plastic plug and screws.
Notice
1. Confirm the electric voltage DC12V and differentiate positive anode and cathode of power supply
2. When external Power is used, suggest to use same power GND with controoller panel.
3. The wire connects reader to controller, advise use 8 cores stranded twisted pair cable(among them,two strands are spare,if no need reader show illegal cards by sound and lightm, SPK,LED wire can not be used, data wire Data 1 Data 0 are twisted pair would be better ,we suggest sectional area are 0.22 square millimeterat least.The length should not exceed 100 meters. Shielded wire connect to GND, over striking and double strand cable will improve reader working performance.
Using + type screw driver to loosen the screw between the panel and motherboard.
And then embed the motherboard to the side wall with the plastic plug and screws.

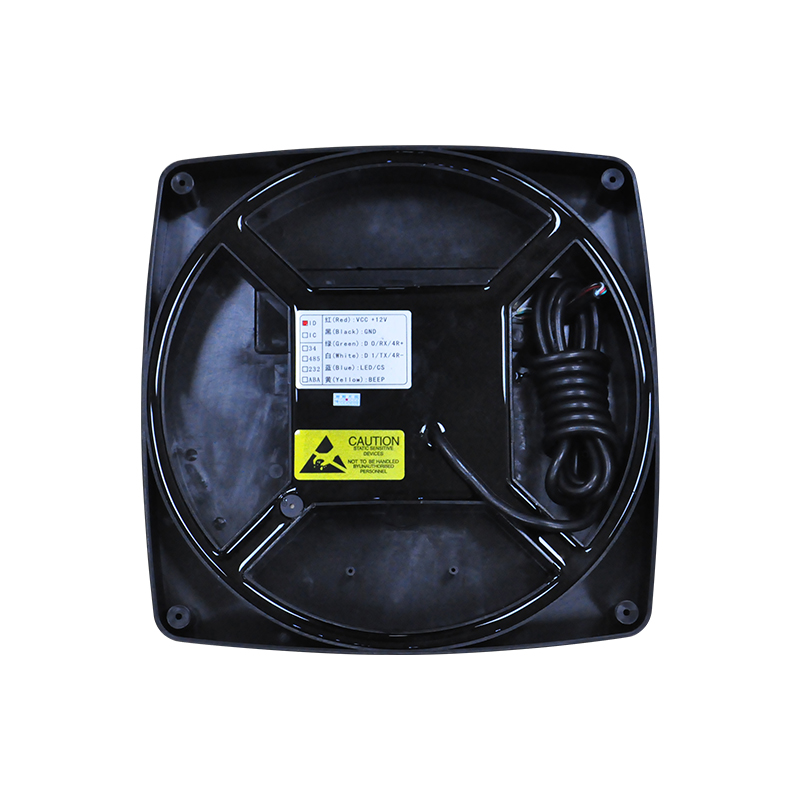

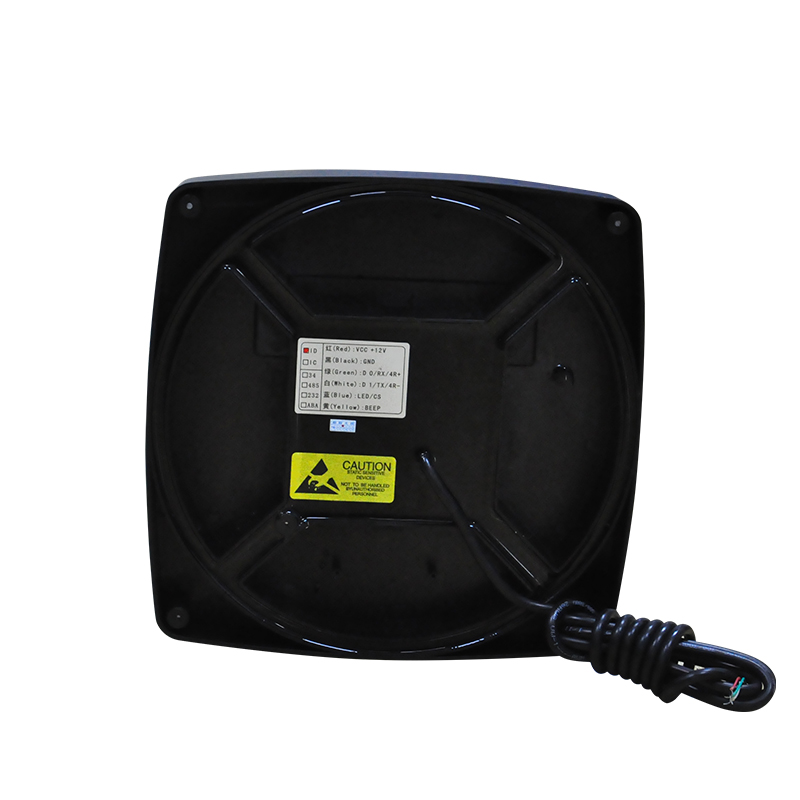

| Wire Connection | |||||
| Weigand | RS485 | RS232 | |||
| Red | DC12V | Red | DC12V | Red | DC12V |
| Black | GND | Black | GND | Black | GND |
| Green | D0 | Green | 4R+ | Green | TX |
| White | D1 | White | 4R- | White | RX |
| Blue | LED | ||||
| Yellow | BEEP | ||||
| Grey | WG26/34 | ||||
| Purple | Ring | ||||
| Purple | |||||
Notice
1. Confirm the electric voltage DC12V and differentiate positive anode and cathode of power supply
2. When external Power is used, suggest to use same power GND with controoller panel.
3. The wire connects reader to controller, advise use 8 cores stranded twisted pair cable(among them,two strands are spare,if no need reader show illegal cards by sound and lightm, SPK,LED wire can not be used, data wire Data 1 Data 0 are twisted pair would be better ,we suggest sectional area are 0.22 square millimeterat least.The length should not exceed 100 meters. Shielded wire connect to GND, over striking and double strand cable will improve reader working performance.
