Access Control Power

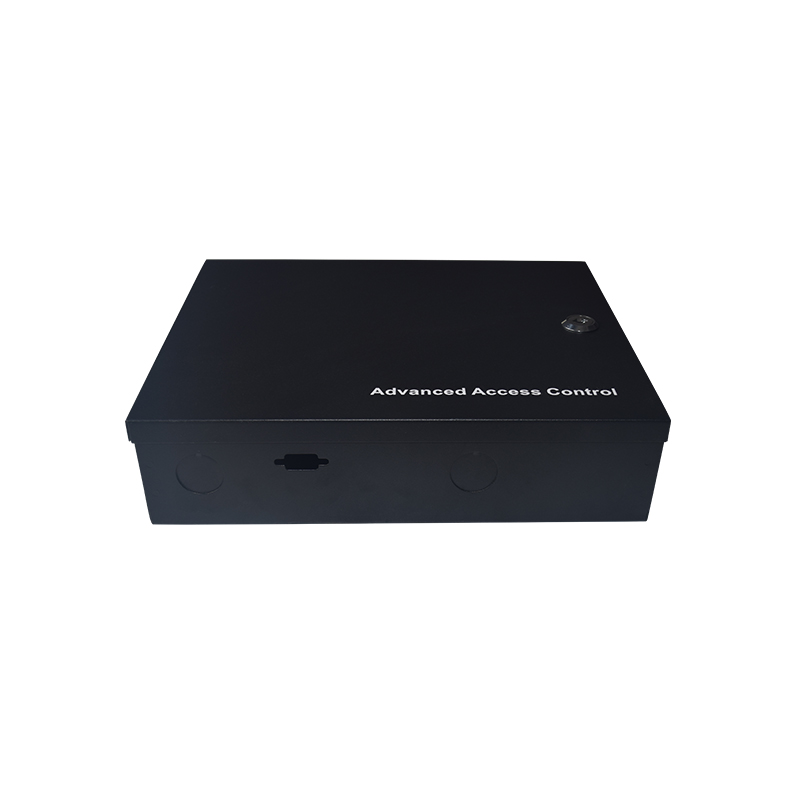

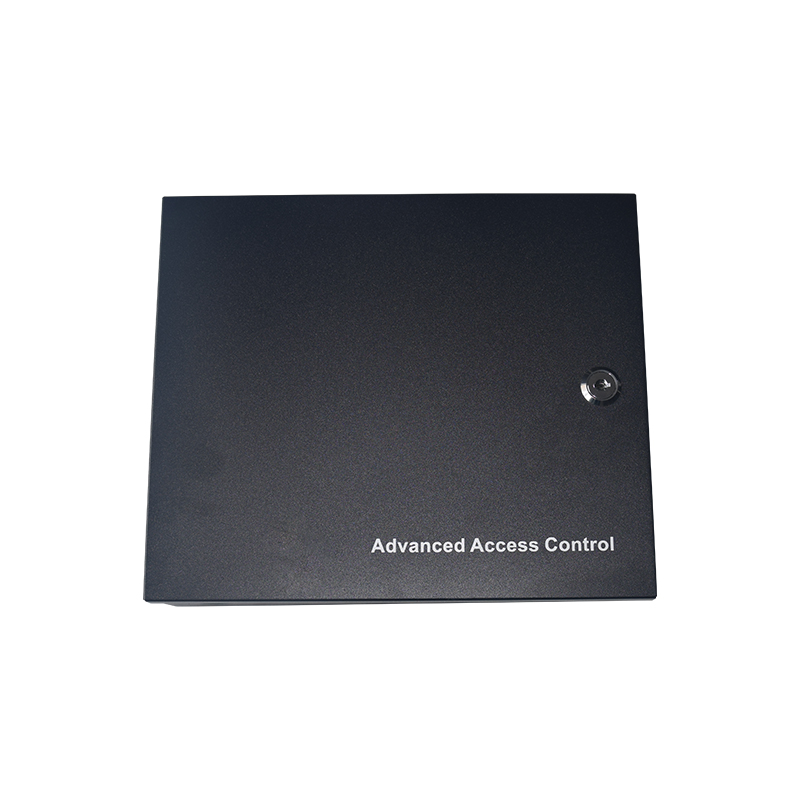

Power Supply Control ST-P02

  • Output voltage: DC 12V
  • Output Current: 5A
  • Input Frequency: 50~60Hz
  • Input voltage: 110~260v

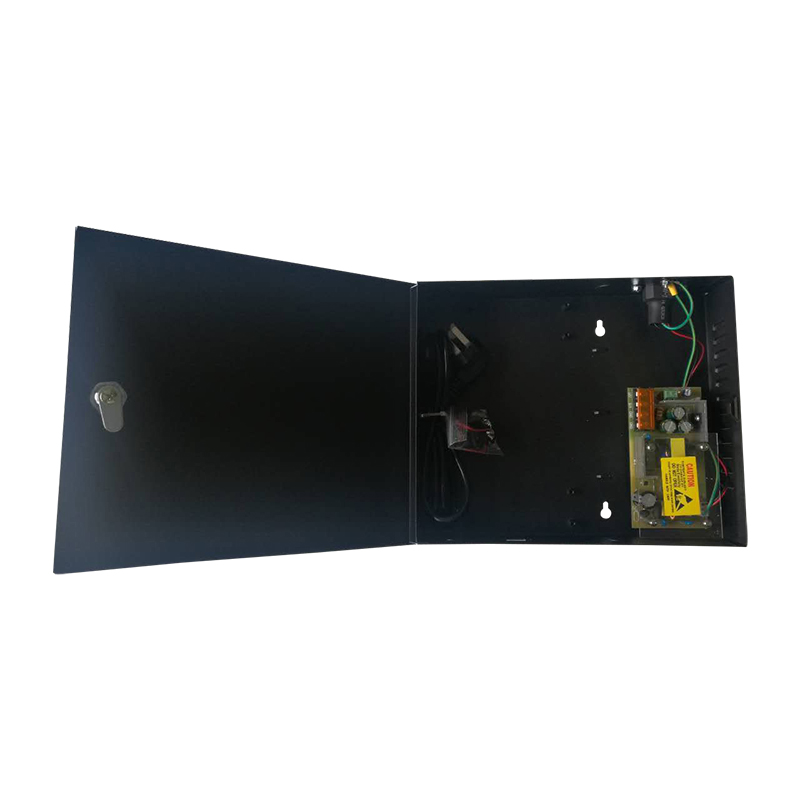

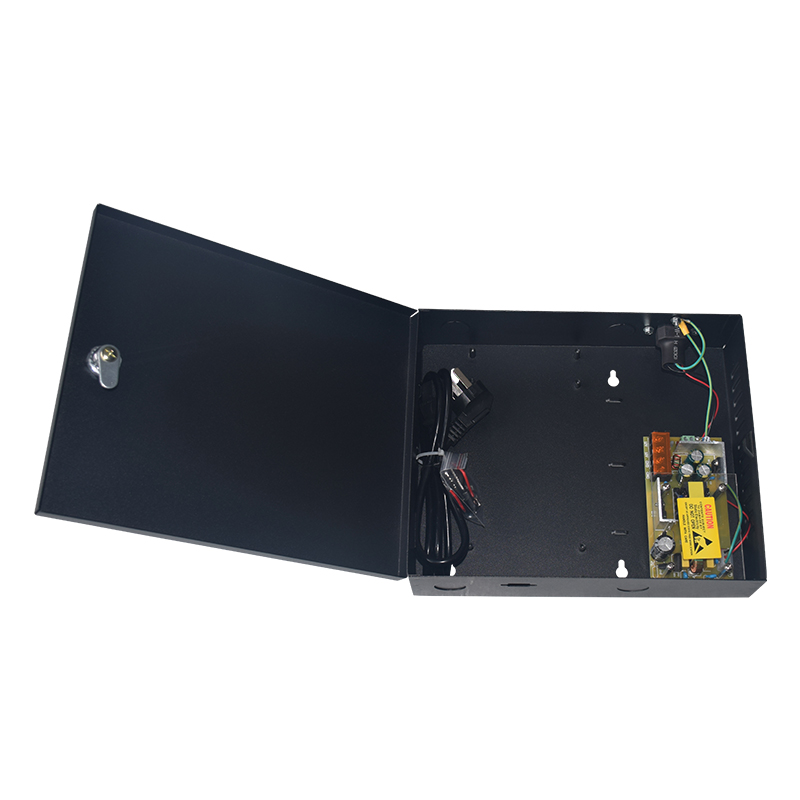

  • DC 12V 5A 50~60Hz power supply panel where you can connect / put the access conroller


Size Approx. 130x 72 x 40mm(L x W x H) Can work with 12V battery
Input voltage 110~260v
Input Frequency 50~60Hz
Output voltage DC 12V
Output Current 5A
Output voltage trim range ±10%~ ±15%
Insulation voltage Junior/sub-polar inter-1500v ac, primary/shell between 1500V AC, subpolar/shell between 500V AC
Hold time full load typically 20ms
Operating temperature -20~ ±35 degree
Overload protection All output in a short circuit, overload are protected; Power output of 0-15 seconds delay locks
Feature Can put Access Controller/can put battery
