Access Control Power

  • GND and NC all the way to control the voltage output no load around 15 volts.12V load.(Connect Electric lock)
  • Direct control of electric locks:The load of the access controller can be reduced, the wiring of the engineering can be saved, and hidden troubles can be reduced.
  • Directly input 12V voltage to open the door
  • Set open button input: The door button and wireless button can be accessed. Directly open the electric lock, automatic protection function.

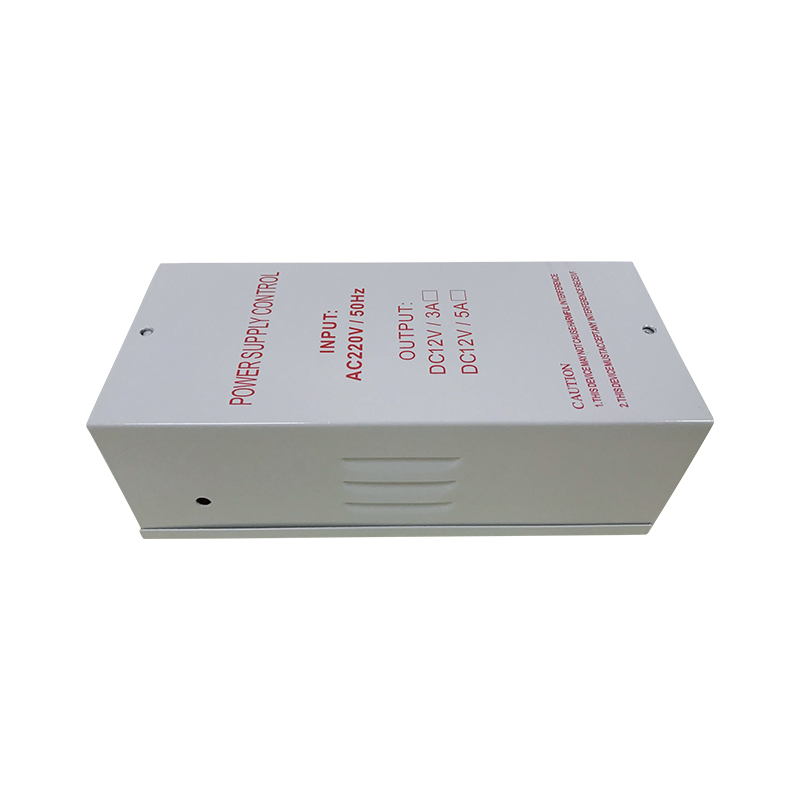

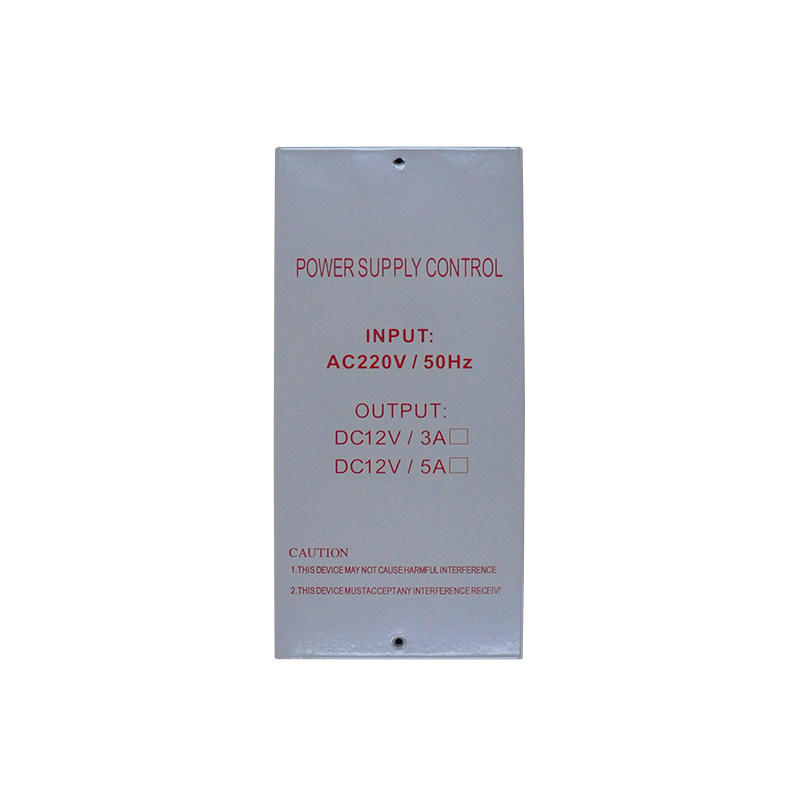

Power Supply Control ST-P03

  • Input voltage: AC 220V
  • Output voltage: DC12V
  • Output current: 3A/5A
  • Suitable For: Access control Electric lock Magnetic Lock Building intercom system
  • Specifications Product name Access Control Power Supply ripple voltage Up 50mV Input voltage AC 220V Input Frequency 50Hz Output voltage DC12V Output current 3A/5A Output voltage trim range +_10%~+_15% Load stability 1%typical Time Delay 0~
  • INQUIRY

Specifications

Product name Access Control Power Supply
ripple voltage Up  ≤ 50mV
Input voltage AC 220V
Input Frequency 50Hz
Output voltage DC12V
Output current 3A/5A
Output voltage trim range +_10%~+_15%
Load stability 1%typical
Time Delay 0~15sec.
Weight approx. 1.5Kg
Output Contact Access control,  Electric Lock,  Release Button, Magnetic Lock
Output stability 0.5% typical
Hold time at full load typ 20ms
Working temperature -20~+65°C
Standard Designe Steel material, Painted
Protect Safely Short Circuit protection
Suitable For Access control, Electric lock, Magnetic Lock, Building intercom system,
Warranty 12months
Features 1.Output: GND and NC all the way to control the voltage output no load around 15 volts.12V load.(Connect Electric lock)
Steady voltage output 12V/1A (connect controller or card reader)
GND and NC all the way to control the voltage output no load around 15 volts.12V load.(Connect Electric lock)
2. Steady voltage output 12V/1A (connect controller or card reader)
3.Direct control of electric locks:The load of the access controller can be reduced, the wiring of the engineering can be saved, and hidden troubles can be reduced.
4.Directly input 12V voltage to open the door
5.Set open button input: The door button and wireless button can be accessed. Directly open the electric lock, automatic protection function.
