Access Control Power

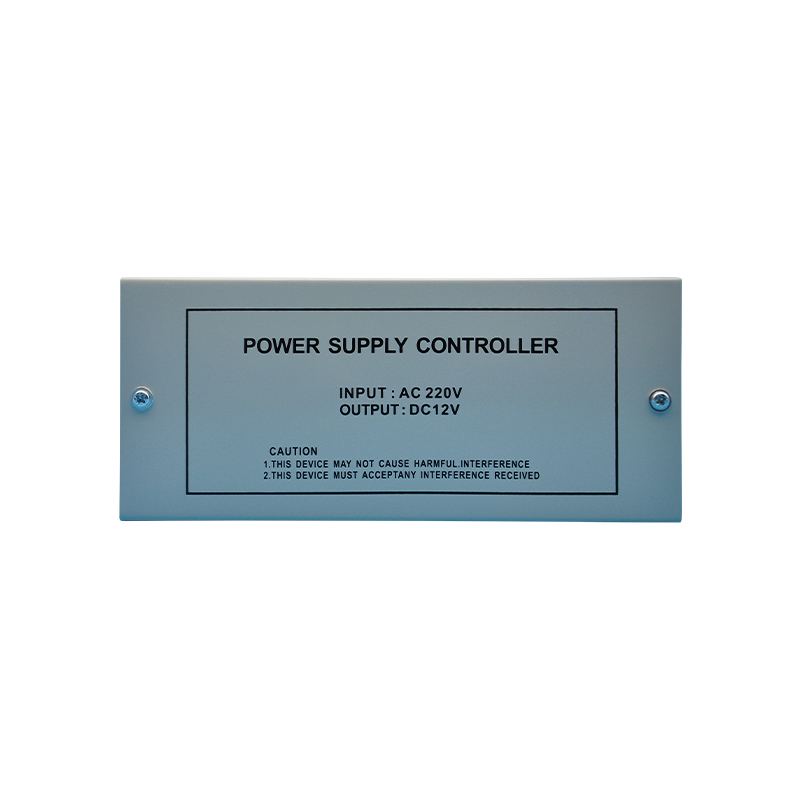

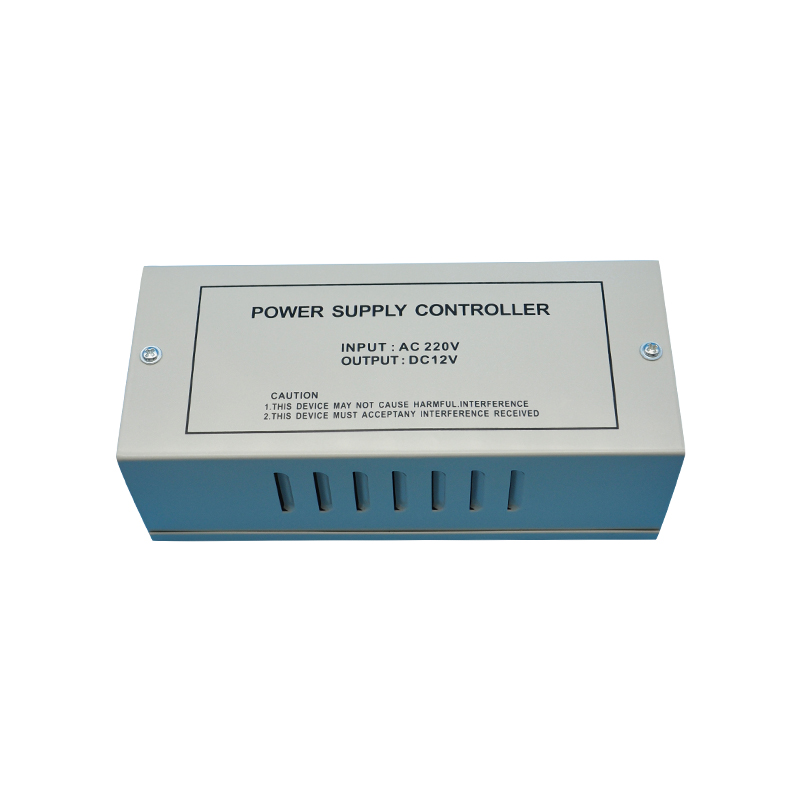

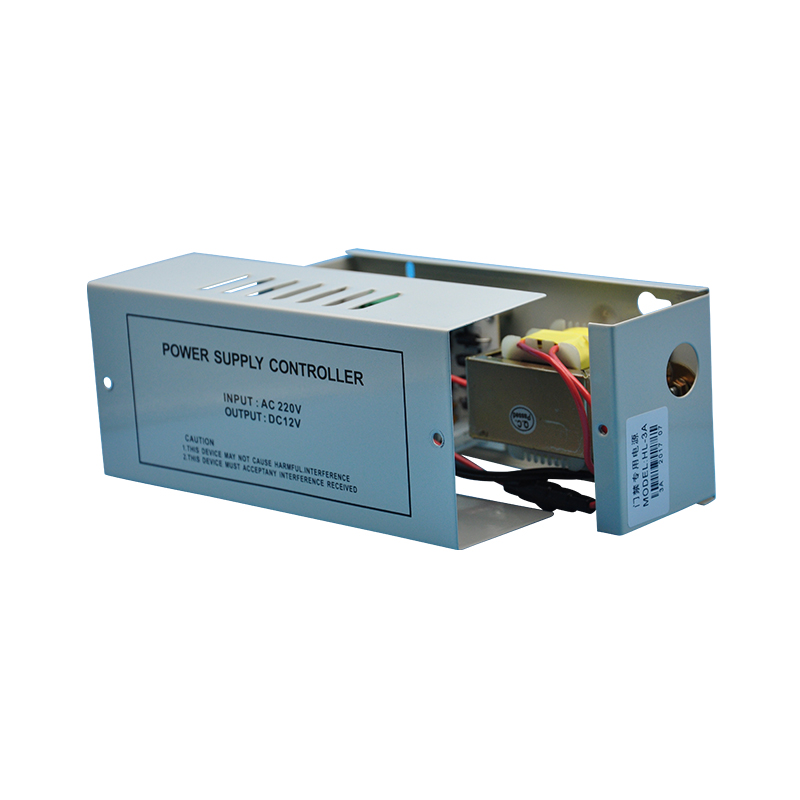

Power Supply Control ST-P05

Output voltage: DC12V
Output current:1A3A5A
Input voltage:AC220V
Working temperature:-20~+65°C
Access control power Supply Manual Wide dinput voltage rangesmall size high reliability electromagnetic compatibility high efficiency size high reliability electromagnetic compatibility high efficiency protection functionwith remote door te
INQUIRY

Size	130mm67mm37mm
ripple voltage	Up ≤ 50mV
Input voltage	AC 110~240V
Input Frequency	50~60Hz
Output voltage	DC12V
Output current	3A
Output voltage trim range	+_10%~+_15%
Load stability	1%typical
Time Delay	0~15sec.
Weight	approx. 0.4Kg
Output Contact	Access control, Electric Lock, Release Button
output stability	0.5% typical
Hold time	at full load typ 20ms
Working temperature	-20~+65°C
Standard Designe	Steel material, Painted
Protect Safely	Short Circuit protection
Suitable For	Access control, Electric lock
Warranty	12months
