Access Control Reader

  • ST-N21

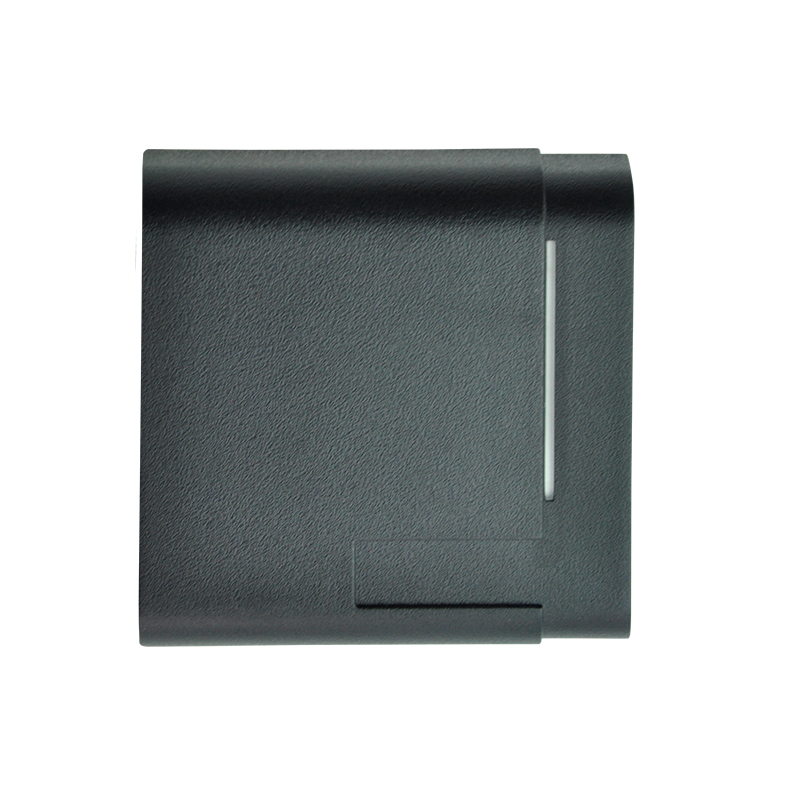

ST-N21 Proximity Rfid Access Control Reader

  • Material: ABS
  • Frequency:125Khz/13.56Mhz
  • Interface:Wiegand 26 /34/RS232/485
  • Size:86mm×86mm×20mm
  • Can't work alone, need work with the access controller panel
Type ST-N21(LF-ID Reader) ST-N21(HF-IC Reader)
Frequency 125KHz 13.56MHz
Support Cards LF: TK4100, M4100, EM4200 HF: MIFARE 1K, F08, MIFARE 4K, Ntag213, Ntag215, I CODE SLIX
Output Format 10 digit dec (Default output format) (Allow user to customize the output format)
Size 86mm×86mm×20mm

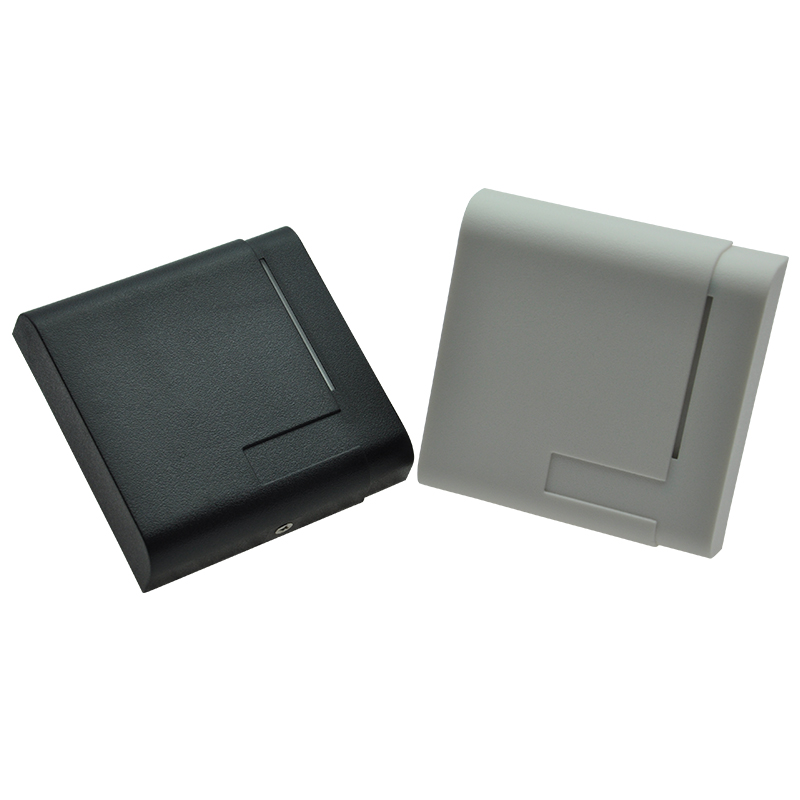

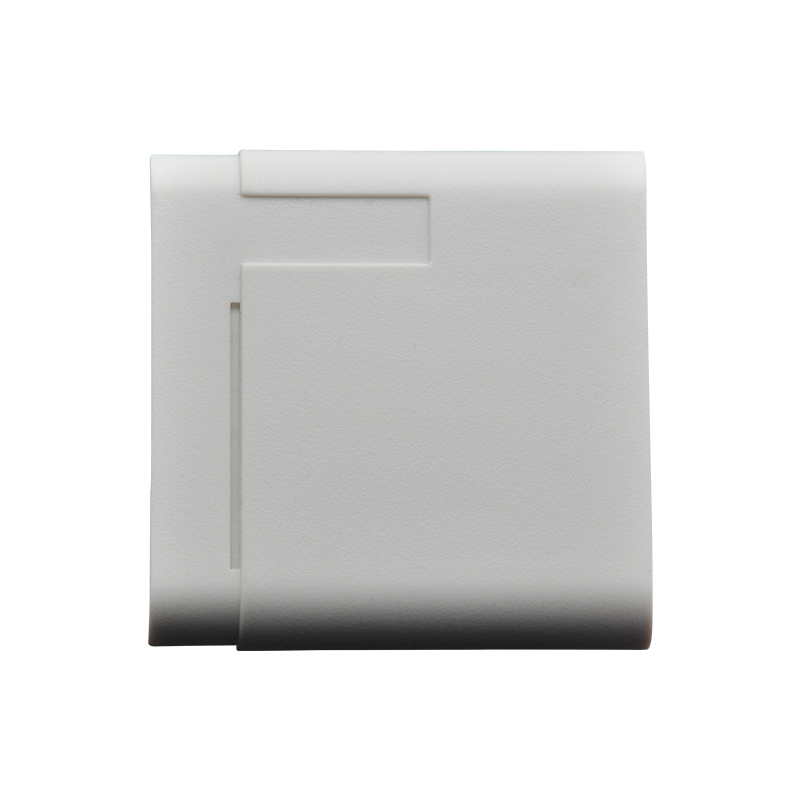

Colour Black/White
Interface Wiegand 26 /34/RS232/485
Power Supply DC5~12V
Static Current less than 50mA
Reading Distance EM ID Card 6~10 cm  MF IC Card 4~8 cm
Temperature *-25℃~85℃
Read speed less than 0.2sec
Humidity  10%~90%
Weight About 140g
Material ABS
Built-in Antenna,speaker,buzzer,red(blue)green color LED
Indicators Double Color LED (Red & Green) and Buzzer (“Red” means standby, “Green” means reader success)

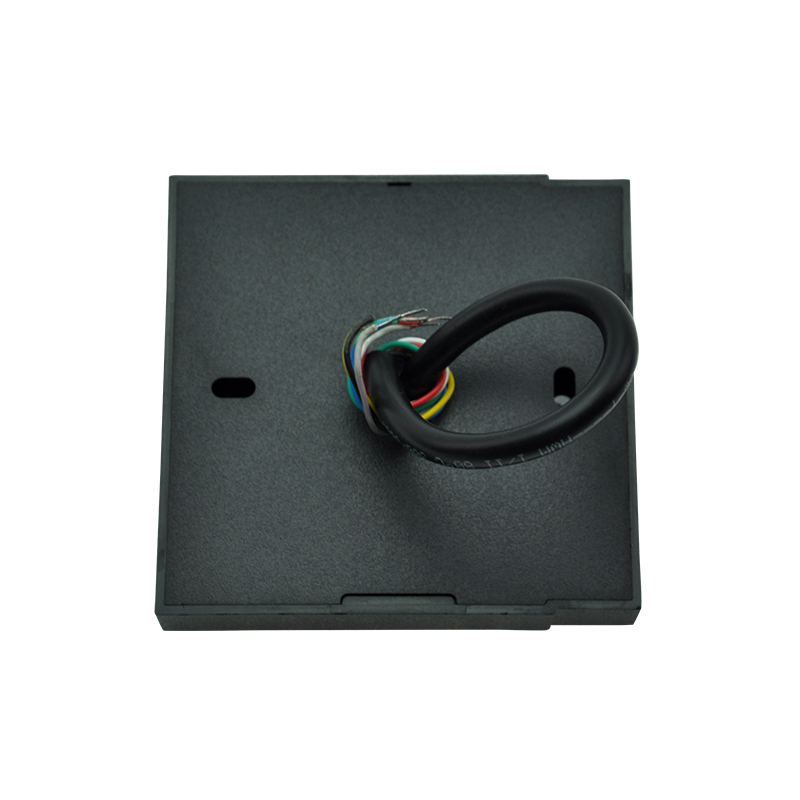

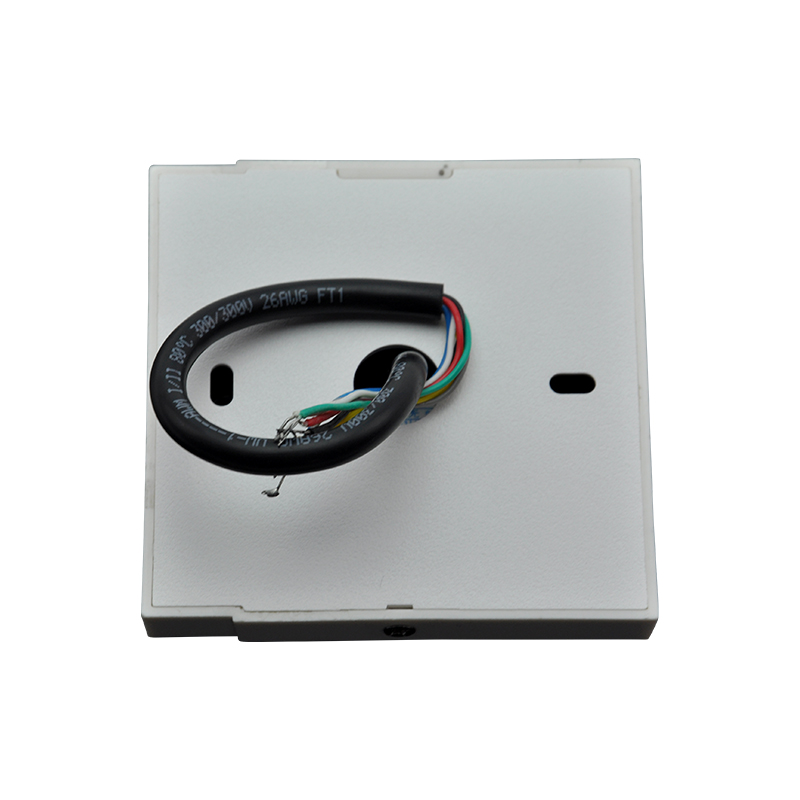

Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.

1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply
2. When external Power is used, make sure sharing the power with Controller Box or using the same GND
3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires

 Package Include:
     1 x RFID card reader(as it is a reader, manual not included)
