Access Control Lock

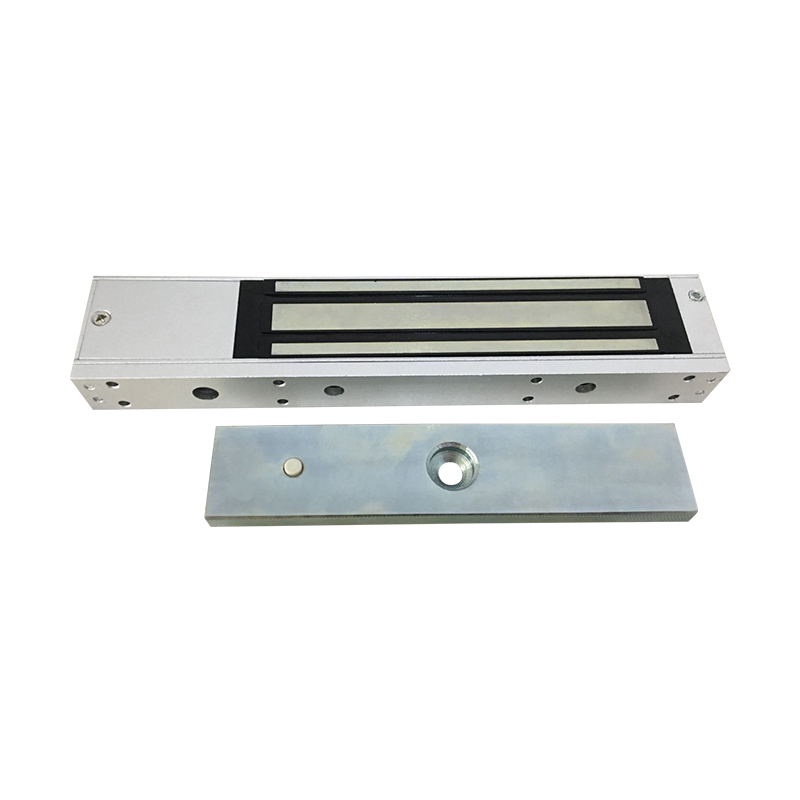

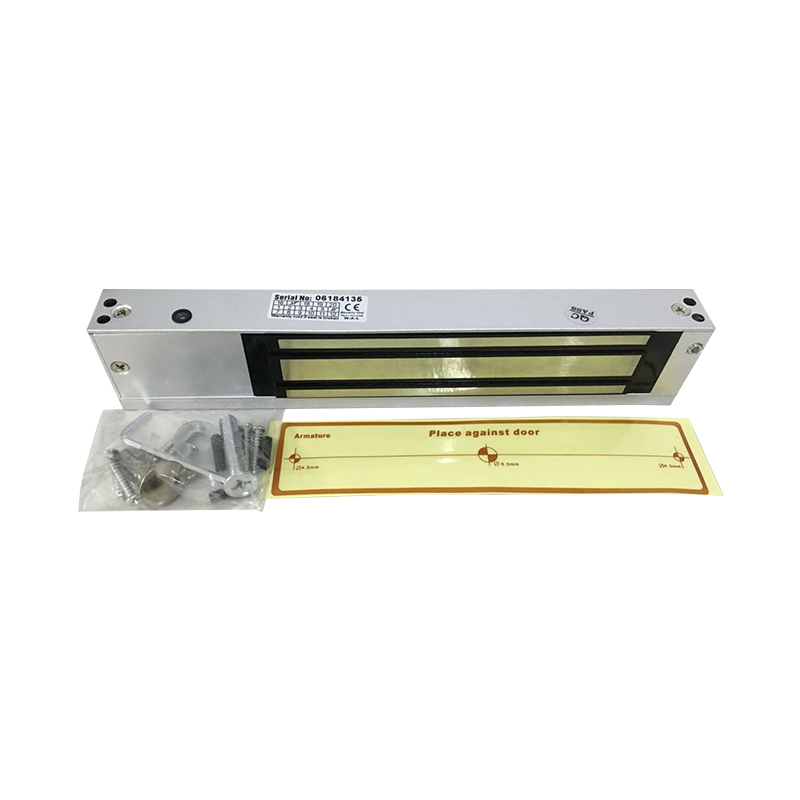

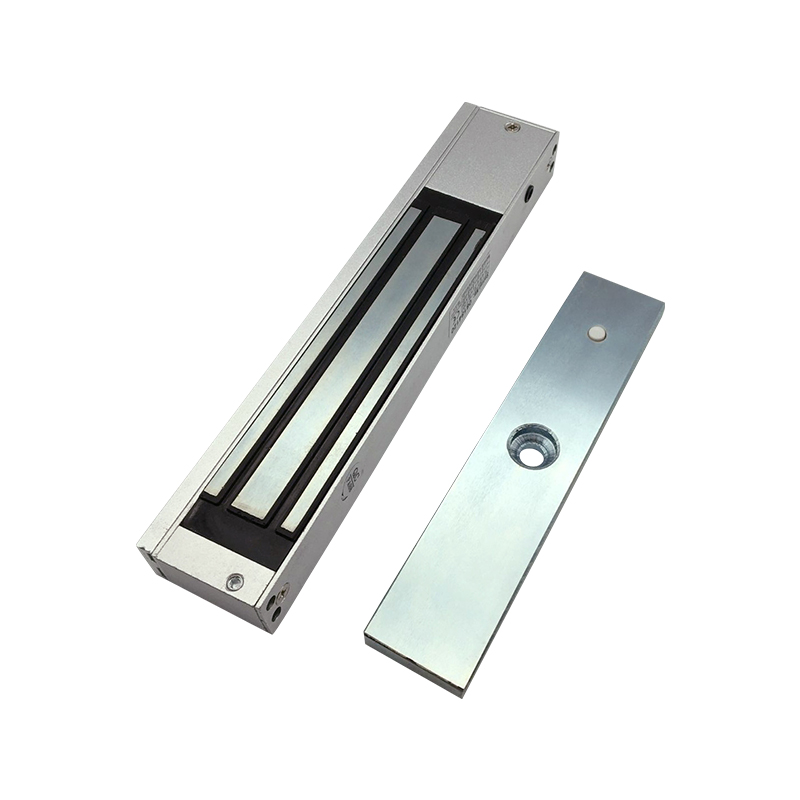

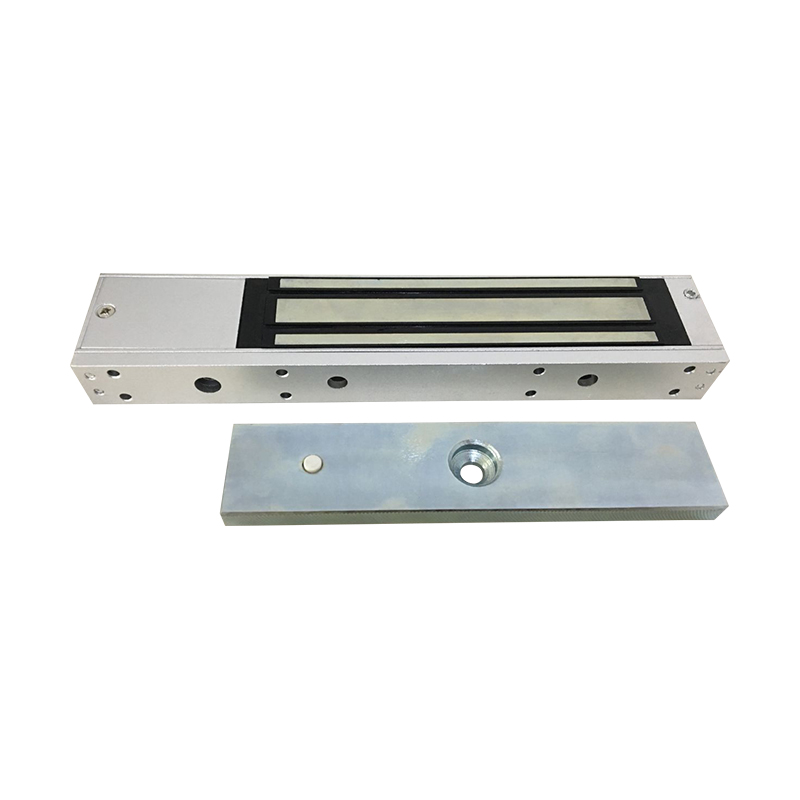

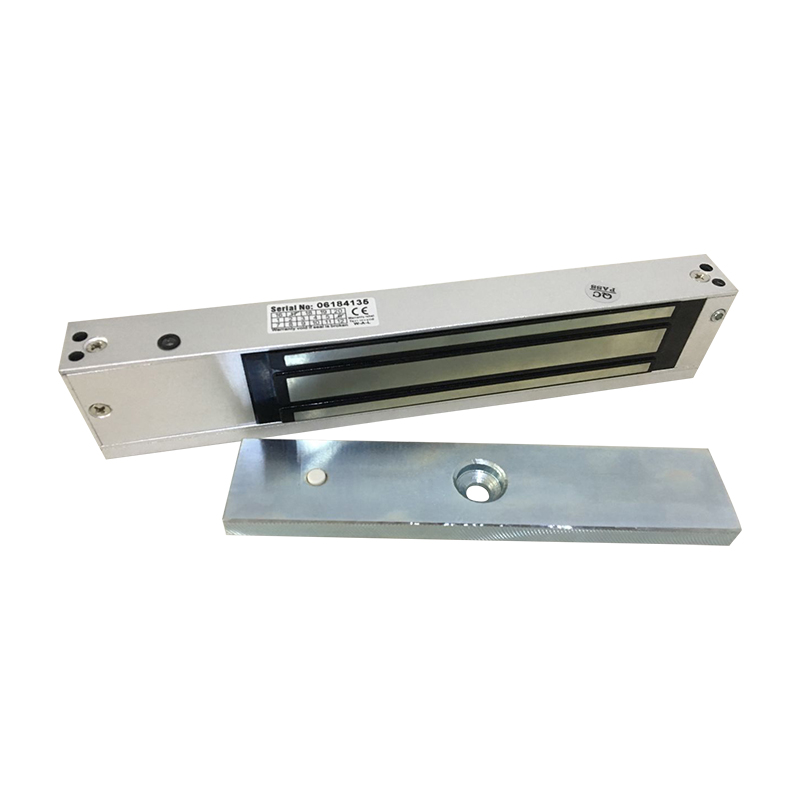

Magnetic Door Lock

  • Holding Force:500kg(1200Lbs)280kg(600Lbs)180kg(400Lbs)
  • Voltage/Current Draw :12V/300mA
  • Suitable for:Wooden door  Glass door me<x>tal door  Fireproof door
  • Finishes for Magnetic:Zinc
  • 1. Door status monitoring output 2. With LED alert to indicate the lock status 3. Low current consumption 4. Reliable holding force 5. High strength material anodized aluminum housing 6. Anti-residual magnetism designed 7. Durable and silence o


Size 250Lx48Wx27H(mm)
Armature plate 180Lx38Wx11H(mm)
Holding Force 500kg(1200Lbs)280kg(600Lbs),180kg(400Lbs)
Voltage/Current Draw 12V/300mA
Surface Temp ≤+20°C
Operating Temp -10~+55°C
Suitable for Wooden door , Glass door ,Metal door , Fireproof door
Suitable Humidity 0~90%(non-condensing)
Finishes for Magnetic Zinc
Finishes for Armature Zinc
